End To End Turnkey PCB Manufacturing Turnkey PCB Assembly Service

Overview
Electronics product development is a journey—from design concept to validated prototype, from pilot production to full market launch. Each stage presents its own challenges, and managing the transitions between stages can be particularly difficult. Studio Electronics offers end-to-end turnkey PCB manufacturing services that support your project at every step of its lifecycle. As a premier provider of PCB assembly in China, we provide continuity and consistency throughout your entire production journey—from engineering support and component sourcing through assembly, testing, and final logistics—ensuring your product reaches market with quality, speed, and cost efficiency.

Our End-to-End Service Journey

Advanced Manufacturing Equipment Supporting End-to-End Services

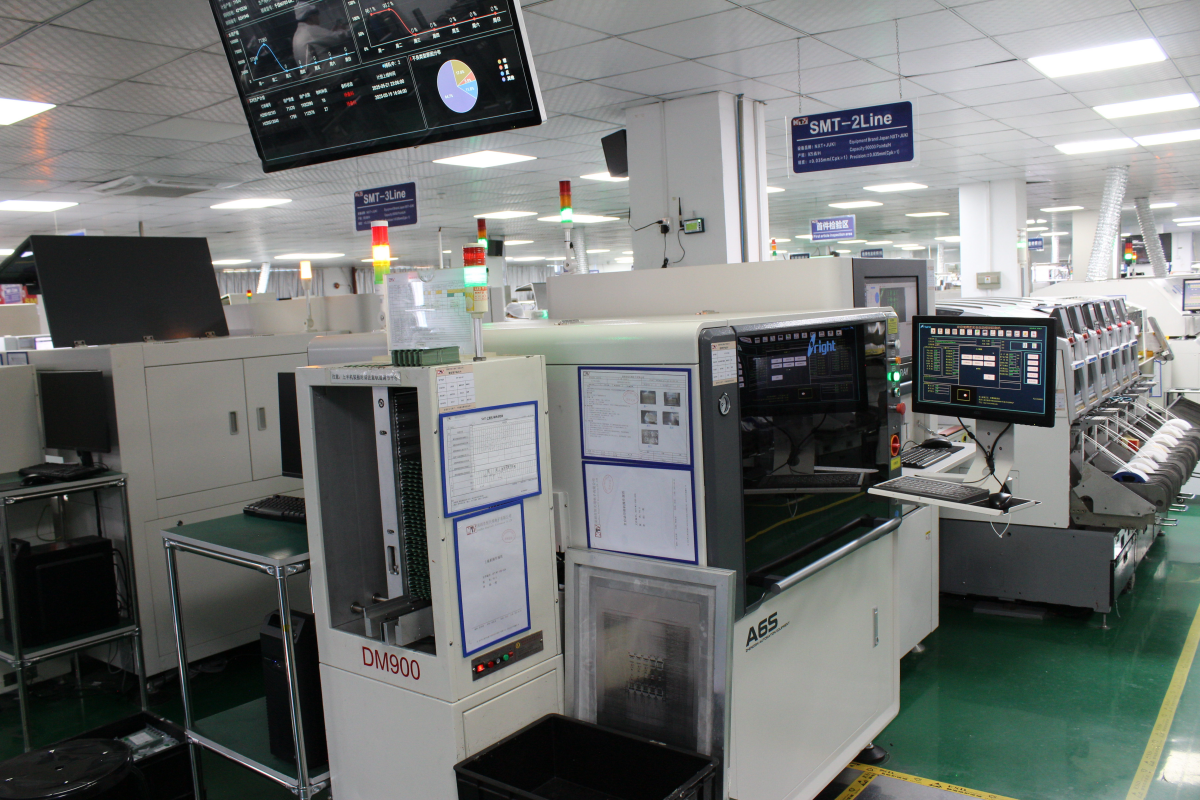

• 12 Fully Automated SMT Production Lines – Capable of mounting up to 100,000 components per hour with placement accuracy of ±25 microns; supports components from 01005 to large BGAs

• Automatic Wave Soldering Machines – Closed-loop temperature control; programmable profiles for consistent through-hole soldering across varying board thicknesses and thermal masses

• Programmable Automated Soldering Robots – ±0.05mm positional accuracy; ideal for selective soldering on complex, mixed-technology boards

• 3D SPI (Solder Paste Inspection) – Micron-level paste measurement; real-time feedback to screen printer for immediate correction

• 3D AOI (Automated Optical Inspection) – AI-assisted defect classification; high-speed optical inspection for component placement and solder joint quality

• 3D X-Ray Inspection – Automated void calculation for BGA and QFN components; detects bridging, insufficient solder, and other hidden defects

• ICT (In-Circuit Tester) – Bed-of-nails testing for rapid verification of component values and circuit integrity

• FCT (Functional Circuit Testing) – Power-on testing simulating real-world operating conditions; custom test fixture development

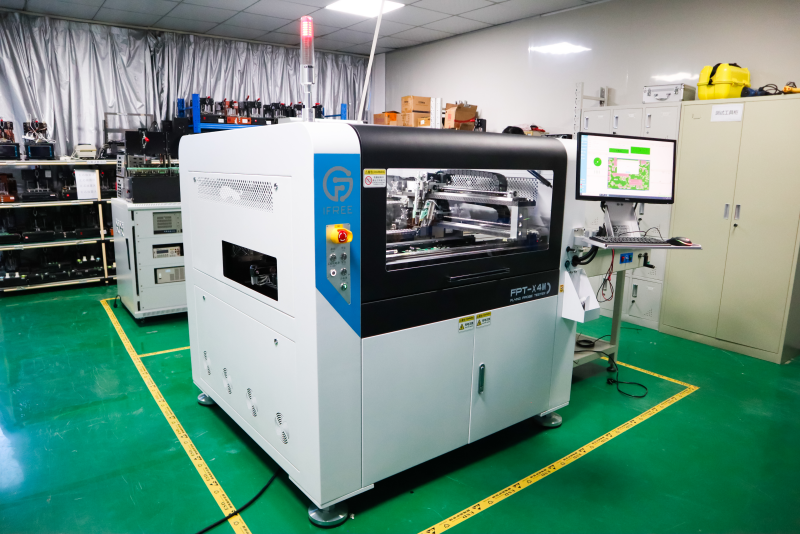

• Flying Probe Tester – Fixture-less electrical testing; ideal for low volume PCB assembly where fixture development is cost-prohibitive

• Reliability Laboratory – Thermal shock (-40°C to +125°C), temperature cycling, damp heat (85°C/85% RH), vibration, and burn-in testing

Why End-to-End Turnkey PCB Manufacturing Matters

Choose Studio for end-to-end turnkey PCB manufacturing services and experience the confidence that comes from having a single partner support your product from concept to delivery
